Product parameters:
1. Material quality: aluminum alloy;
2. Process: CNC integrated fine carving;
3. Charging interface: type-c interface (USB-C);
4. Battery capacity: 1400mA (milliampere);
3. Charging time: fast charge, can be fully charged in 1.5 hours without electricity;
4. Use time: The output current is 2.0A, under the condition of normal 8V voltage work, it can work continuously for more than 5 hours, the voltage is stable, and the intermittent use can be about 6 hours;
5. Motor: Coreless motor (9V10000 revolutions);
6. Travel distance: 0-0.38mm;
7. Starting voltage: the default starting voltage is 8V;
8. Working voltage: 5-12V;
9. Forced start function: strong start when booting, without jamming the needle, it can drive the large needle;
Instructions for use:

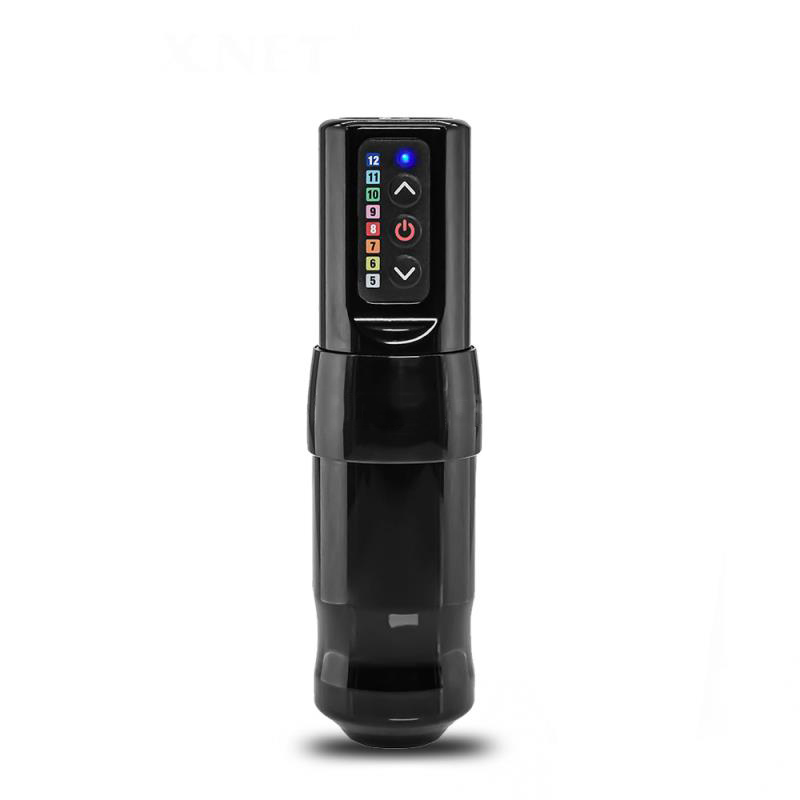

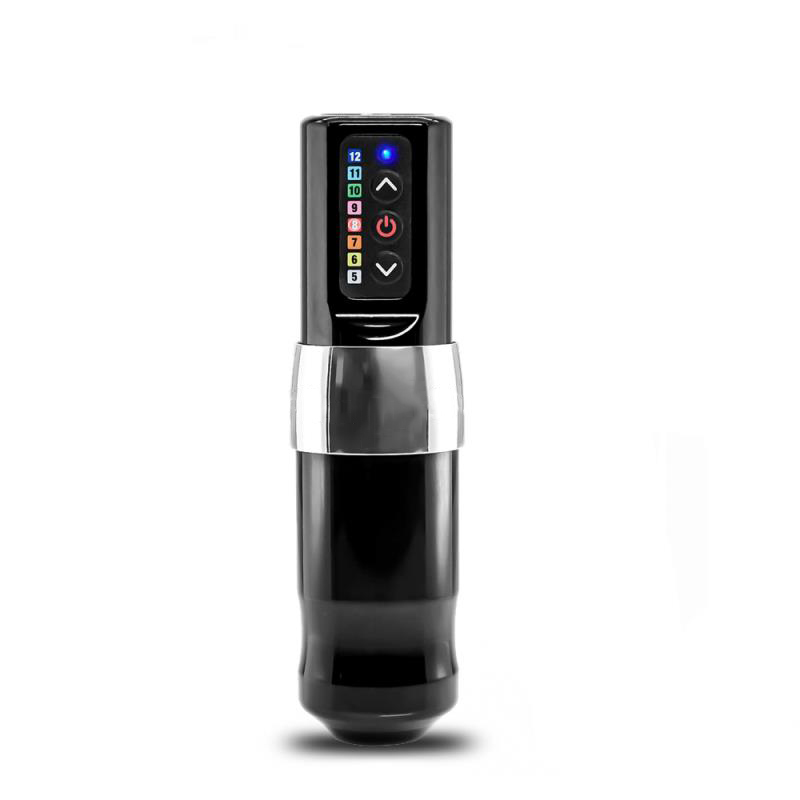

The device is a tattoo pen with a built-in lithium battery, which can be used directly without a foot pedal and hook line. It consists of two parts: 1. The upper half of the lithium battery power supply 2. The lower half of the tattoo pen; the middle part can be unscrewed to replace the upper half Lithium battery, or equipped with RCA conversion connector for use.
The specific functions as below:
1. Power on: Long press the middle "O" key for 5 seconds to turn on, and then long press for 5 seconds to turn off;
2. Pause: During normal work, short press the "O" key to pause the work, and short press again to resume the working state;
3. Adjust the voltage: adjust the voltage range by pressing the "∧" or "∨" key. Each time you press to adjust 1V, the corresponding voltage indicator will light up. The minimum voltage: 5V, the maximum voltage is 12V, and the startup default is 8V ；
4. Indicator light display: blue indicator light: there is electricity and is in a working state; red indicator light: needs to be charged; red indicator light flashes: charging;
5. Daily charging: external charging port, use type-c interface data cable to charge;
6. Lithium battery warranty: one year warranty, the upper half of the lithium battery can be purchased separately for backup or replacement;
Power parameters:
1. Input: The device is charged by connecting to the power supply through the type-c charging port, and then the lithium battery has its own power storage, and the battery capacity is 1400 mA;
2. Output: The output current is fixed at 2A. The lithium battery releases the power storage through the activation of the switch key, and supplies power to the built-in motor, thereby starting the tattoo pen and driving the needle out. Output voltage range: (5-12V), 5V is the lowest voltage, 12V is the highest voltage;
3. Advantages:
①. Simple operation, convenient use, one pen can work, no need to pedal hook cord power supply;
②. The display is simple, clear at a glance, and beautiful in appearance;
③. 2.0A output, battery life up to 5 hours, stable power output;
④. The grip is designed with an intricately carved and non-slip edge, which will not be tired after long-term use, and will not slippery when sweating;
⑤. The upper half of the lithium battery can be purchased separately for replacement, backup power supply, convenient and worry-free, and longer battery life;
⑥. It also can be matched with RCA connector, using power supply, RCA cord and foot pedal for operation;
⑦. The needle port is Xia'an standard size, suitable for most of the integrated needles on the market;
⑧. Built-in stainless steel high-grade positioning steel ball in the adjustment handle, accurate adjustment, crisp sound and better use effect.
